Specifications
- Maximum Torque
- 8.1 Nm @ 5000 rpm
- Number of Cylinders
- 1
- Seat Height
- 760 mm
- Maximum Power
- 7.2 HP @ 7500 rpm
- Number of Gears
- Automatic
- Ground Clearance
- 128 mm
- Kerb Weight
- 104 kg
- Fuel Tank Capacity
- 5 litres
Pros(0)
No pros available
User opinions about the positive aspects of this vehicle will appear here.
Cons(0)
No cons available
User opinions about the areas for improvement will appear here.
Pricing Information
Ex-showroom prices across different cities
Ex-showroom price
User Reviews
Real experiences from Yamaha Ray owners
Based on 0 reviews
Rating Distribution
No reviews found
Be the first to review Yamaha Ray
User Discussions
Ask questions and get answers from the community
No questions yet
Be the first to ask a question about Yamaha Ray
Popular Comparisons
See how Yamaha Ray compares with other vehicles
No comparisons found
There are no popular comparisons available for Yamaha Ray at the moment.
Comparisons will appear here as they become available.
Complete Specifications
Yamaha Ray
- Engine Details
- Newly designed air-cooled 113cc four stroke single cylinder engine with BLUE CORE technology
- Fuel System
- Carburetor
- Cooling
- Air Cooling
- Engine cc (Displacement)
- 113 cc
- Maximum Power
- 7.2 HP @ 7500 rpm
- Maximum Torque
- 8.1 Nm @ 5000 rpm
- Number of Cylinders
- 1
- Emission Norms
- BS4-Compliant
- Ignition
- C.D.I (Capacitor Discharge Ignition)
- Lubrication
- Force-feed Lubrication , wet sump
- Bore
- 50 mm
- Stroke
- 57.8 mm
- Number of Gears
- Automatic
- Clutch
- Dry, Centrifugal
- Gear Ratios
- 2.259~0.824
- Overall Length
- 1835 mm
- Overall Width
- 675 mm
- Overall Height
- 1090 mm
- Ground Clearance
- 128 mm
- Seat Height
- 760 mm
- Wheelbase
- 1270 mm
- Kerb Weight
- 104 kg
- Fuel Tank Capacity
- 5 litres
- 0-60 kmph
- 12 secs
- Front Brake
- 130mm drum
- Rear Brake
- 130mm drum
- CBS
- Front Tyre
- 90/100-10 53J
- Rear Tyre
- 90/100-10 53
- Wheel Type
- Steel Wheels
- Tubeless Tyres
- Alloy Wheels
- Scooter Variant
- 2020 Yamaha Ray Z UBS
- Availability Status in India
- Discontinued
- 2-Wheeler Type
- Scooter
- Latest Price in India
- 2020 Yamaha Ray Z UBS price was Rs 52,247 before being discontinued.
- Fuel Type
- Petrol
- Colour Options

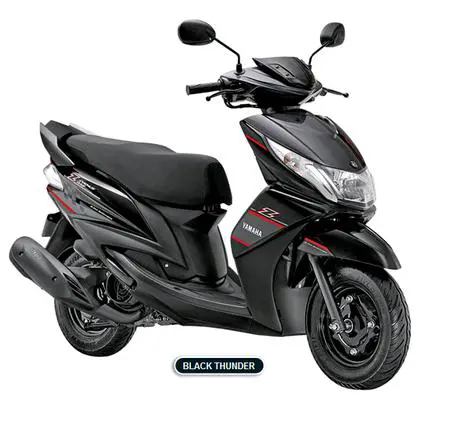

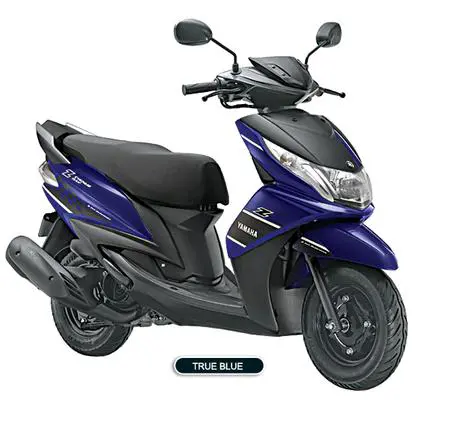

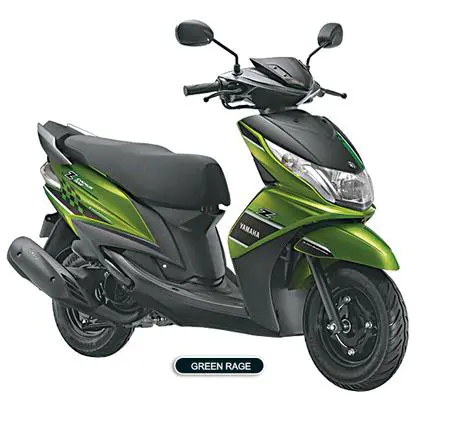

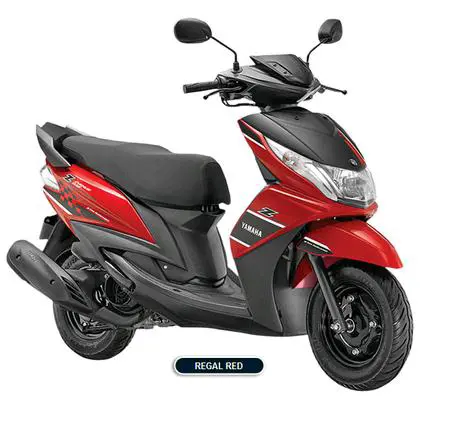

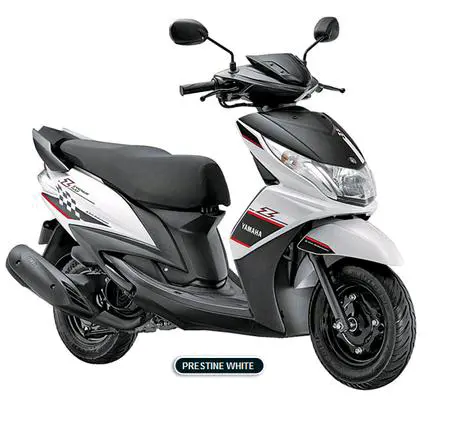

- Black Thunder, True Blue, Regal Red, Pristine White, Green Rage
- Official Tagline
- Your New BRO
- Pass Light
- Battery Type
- Maintenance Free
- Capacity
- 5 AH (10 H)
- Voltage
- 12V
- Head Light
- Halogen bulb 12V,35W/35W X1
- Turn Signal Light (Front)
- 12V,21W/5W X1
- Turn Signal Light (Rear)
- 12V, 10W X2
- Automatic Headlamp On (AHO)
- Mileage
- 45-55 kmpl (Approx.)
- Front Suspension
- Telescopic
- Rear Suspension
- Unit Swing
- Frame (Chassis)
- Underbone
- Vehicle Overview
- Yamaha Ray Z is one from the lot of conventional scooters, Yamaha Ray Z is a second generation scooter from the company (after Yamaha Ray). It has an 113 cc engine giving a power figure of 7 bhp @ 7500 rpm and gives a torque of 8.1 nm @5000 rpm. Yamaha Ray Z is easily one of the coolest scooters of the lot given its looks. It faces tough competition from Activa 3G and TVS Jupiter in the same segment.
- Step-up Seat/Split Seat
- Pillion Footrest
- Electric Start
- Braking System
- UBS (Unified Braking System)
- Speedometer
- Analogue
- Fuel Gauge
- Analogue
Expert Verdict
Professional reviews and expert opinions on Yamaha Ray
The Yamaha Ray is a popular scooter in India that has caught the attention of many riders. Known for its stylish looks and decent performance, it stands out in the crowded scooter market. This review dives into various aspects of the Yamaha Ray, helping potential buyers make an informed decision.
Key Takeaways
- The Yamaha Ray features a sleek design that appeals to younger riders.
- It offers a comfortable ride, making it suitable for both city commuting and longer trips.
- While it has good performance, some users note issues with ground clearance.
- The scooter is praised for its fuel efficiency, making it economical for daily use.
- Customer support and service experiences are generally positive, enhancing ownership satisfaction.
Design and Styling of Yamaha Ray
Exterior Aesthetics
The Yamaha Ray stands out with its sleek and modern design. Its sharp lines and sporty look make it appealing to young riders. The front features a stylish headlamp that enhances visibility and adds to its aggressive stance.
Color Options
Yamaha offers a variety of color choices for the Ray, allowing buyers to select one that matches their personality. Some popular options include:
- Midnight Black
- Pearl White
- Red
- Cyan
Build Quality
The build quality of the Yamaha Ray is commendable. It feels sturdy and well-constructed, which is essential for safety and durability. However, some users have noted that the ground clearance could be better, as it measures only 128mm. This can be a concern on uneven roads.
Overall, the Yamaha Ray combines style and functionality, making it a great choice for city commuting.
Performance and Handling
Engine Specifications
The Yamaha Ray is powered by a robust engine that delivers a smooth and responsive ride. The engine feels eager to accelerate, making it suitable for both city commuting and longer rides. The Continuously Variable Transmission (CVT) is well-tuned, allowing for seamless power delivery without straining the engine.
Ride Quality
The ride quality is impressive, especially on uneven surfaces. Here are some key points:
- No vibrations felt at speeds up to 40 km/h.
- The suspension absorbs shocks effectively, making it comfortable over bumps.
- The scooter handles well in turns, providing confidence even on wet roads.
Acceleration and Top Speed
The Yamaha Ray offers decent acceleration, making it easy to merge into traffic. Here’s a quick overview:
| Speed (km/h) | Vibration Level |
|---|---|
| 0 - 40 | None |
| 40 - 60 | Minimal |
| 60+ | Noticeable |
The Yamaha Ray stands out for its balance and handling, making it a reliable choice for daily use.
Comfort and Ergonomics
Seating Position
The Yamaha Ray offers a comfortable seating position that many riders appreciate. The seat is firm and contoured, making it suitable for both short and long rides. Riders around 5'7" find it easy to place both feet flat on the ground, enhancing stability when stopped.
Suspension System
The suspension system of the Yamaha Ray is impressive. It effectively absorbs bumps and potholes, providing a smooth ride. Here are some key points about the suspension:
- Handles rough roads well
- Prevents bottoming out
- Offers a comfortable experience even on uneven surfaces
Rider and Pillion Comfort
While the Yamaha Ray is designed for comfort, there are some considerations for riding with a passenger:
- The scooter may feel less stable with a pillion due to its lightweight.
- The seat design could be improved for better fit.
- Overall, it remains a good choice for city commuting, especially for its fuel efficiency and ease of handling.
The Yamaha Ray is a solid option for daily commuting, balancing comfort and performance well.
Fuel Efficiency and Mileage
Real-World Mileage
The Yamaha Ray is known for its impressive fuel efficiency. Many users report achieving 55 to 61 kmpl depending on their riding conditions. This makes it a great choice for daily commuting.
Fuel Tank Capacity
The scooter comes with a fuel tank capacity of 5.2 liters, allowing for longer rides without frequent refueling.
Eco-Friendly Features
Yamaha has integrated several eco-friendly features in the Ray, including:
- Efficient engine design
- Low emissions
- Lightweight construction for better mileage
The Yamaha Ray stands out for its excellent mileage, making it a smart choice for budget-conscious riders.
Safety Features
Braking System
The Yamaha Ray is equipped with a reliable braking system that enhances safety during rides. The front disc brake provides better stopping power, which is crucial for quick stops. The rear brake is also effective, ensuring balanced braking performance. Here are some key points about the braking system:
- Front disc brake for improved stopping power
- Rear drum brake for reliable performance
- Brake levers designed for comfort and control
Lighting and Visibility
Visibility is essential for safe riding, and the Yamaha Ray does not disappoint. The scooter features bright headlights and tail lights that ensure you are seen by others on the road. Key features include:
- LED headlights for better illumination
- Reflectors on the sides for increased visibility
- Clear tail lights that enhance rear visibility
Additional Safety Measures
To further enhance safety, the Yamaha Ray includes several thoughtful features:
- Anti-lock braking system (ABS) in some variants for added control
- A sturdy frame that provides stability
- A comfortable seating position that allows for better control
The Yamaha Ray combines style with safety, making it a great choice for riders who prioritize both aesthetics and protection on the road.
Technology and Instrumentation
Dashboard and Console
The Yamaha Ray features a modern dashboard that is easy to read. It includes essential information like speed, fuel level, and trip details. The layout is user-friendly, making it simple for riders to keep track of their ride.
Connectivity Features
The scooter comes with several connectivity options that enhance the riding experience. Here are some key features:
- Bluetooth connectivity for hands-free calls
- USB charging port for devices
- Smart notifications for incoming messages
Advanced Technologies
Yamaha has integrated advanced technologies into the Ray to improve performance and safety. Some notable features include:
- Fuel Injection System for better fuel efficiency
- LED headlights for improved visibility at night
- Anti-lock Braking System (ABS) for safer stops
The Yamaha Ray combines technology and style, making it a great choice for both new and experienced riders.
Ownership Experience
Customer Reviews
Many riders have shared their thoughts on the Yamaha Ray. Overall, the feedback is quite positive. Most users appreciate the smooth ride and stylish design. Here are some common points from reviews:
- Good performance in city traffic.
- Attractive looks that catch attention.
- Comfortable for daily commutes.
Service and Maintenance
Maintaining the Yamaha Ray is essential for a long-lasting experience. Here are some key maintenance tips:
- Change gear oil every 4000 km.
- Check the fuel pump after 7000 km.
- Regularly inspect brakes and tires for safety.
Warranty and Support
Yamaha offers a decent warranty on the Ray, which adds to the ownership experience. The support from service centers is generally reliable, but parts can be a bit pricey.
Overall, owning a Yamaha Ray is a good experience, with many riders enjoying its performance and style.
Price and Value for Money
Ex-Showroom Price
The Yamaha Ray is priced competitively in the market, making it an attractive option for many buyers. The ex-showroom price typically ranges around INR 70,000 to INR 80,000, depending on the variant and location.
On-Road Price
When considering the on-road price, which includes taxes and registration, the total cost can go up to approximately INR 85,000 to INR 95,000. This price range is reasonable for a scooter that offers a blend of style and performance.
Financing Options
For those looking to finance their purchase, several banks and financial institutions offer attractive loan options. Here are some common financing features:
- Low-interest rates: Many lenders provide loans with interest rates starting as low as 8%.
- Flexible repayment terms: Options for repayment can range from 1 to 5 years.
- Minimal down payment: Some schemes allow for a down payment as low as 10% of the total cost.
Overall, the Yamaha Ray offers great value for money. With its stylish design, decent performance, and good fuel efficiency, it stands out as a smart choice for urban commuting.
Comparisons with Competitors
Yamaha Ray vs Honda Dio
The Yamaha Ray competes closely with the Honda Dio, which is known for its stylish design and reliable performance. The Dio often edges out in terms of features and technology. Here’s a quick comparison:
| Feature | Yamaha Ray | Honda Dio |
|---|---|---|
| Price | ?85,030 | ?77,016 - 83,016 |
| Engine | 125 cc | 110 cc |
| Mileage | 48-51 km/l | 55 km/l |
| Weight | 104 kg | 103 kg |
Yamaha Ray vs Suzuki Access
The Suzuki Access is another strong competitor. It offers a smooth ride and good storage options. Here’s how they stack up:
| Feature | Yamaha Ray | Suzuki Access |
|---|---|---|
| Price | ?85,030 | ?80,721 - 91,321 |
| Engine | 125 cc | 124 cc |
| Mileage | 48-51 km/l | 50-55 km/l |
| Weight | 104 kg | 102 kg |
Yamaha Ray vs TVS Jupiter
The TVS Jupiter is popular for its comfort and performance. Here’s a brief look:
| Feature | Yamaha Ray | TVS Jupiter |
|---|---|---|
| Price | ?85,030 | ?75,800 - 88,350 |
| Engine | 125 cc | 110 cc |
| Mileage | 48-51 km/l | 62 km/l |
| Weight | 104 kg | 108 kg |
In summary, while the Yamaha Ray offers decent performance, it may lack some features that competitors provide, making it essential for buyers to consider their priorities.
Pros and Cons of Yamaha Ray
Advantages
- Stylish design that appeals to many riders.
- Good mileage for city commuting.
- Smooth handling and ride quality.
Disadvantages
- Some users report issues with the self-start feature after a few months.
- The ground clearance is lower than some competitors, which can be a concern on rough roads.
- Limited storage space under the seat.
User Feedback
- Many riders appreciate the overall performance and value for money.
- Some have faced minor issues with the front suspension and headlight functionality.
Overall, the Yamaha Ray is a solid choice for urban riders looking for a stylish and efficient scooter, but potential buyers should be aware of its limitations.
Market Position and Popularity
Target Audience
The Yamaha Ray is designed for a diverse group of riders, including:
- Young adults looking for style and performance.
- Commuters needing a reliable daily ride.
- Families seeking a practical scooter for errands.
Sales Performance
Yamaha Ray has shown strong sales in India, competing well against other popular scooters. Here’s a quick comparison of some top competitors:
| Scooter Model | Ex-Showroom Price (?) |
|---|---|
| Yamaha Ray | 87,081 |
| Honda Activa 6G | 78,376 |
| TVS Jupiter | 77,199 |
| Suzuki Access 125 | 82,196 |
| TVS Ntorq 125 | 94,174 |
Brand Reputation
Yamaha is known for its quality and performance, which helps the Ray stand out in a crowded market. Many riders trust Yamaha for its durability and style.
The Yamaha Ray has carved a niche for itself, appealing to those who value both aesthetics and functionality in a scooter.
Final Thoughts on the Yamaha Ray
In conclusion, the Yamaha Ray is a scooter that offers a mix of good and not-so-good features. It has a stylish design and performs well on the road, making it a great choice for city rides. However, some issues like low ground clearance and basic features might disappoint some riders. Overall, if you’re looking for a reliable and attractive scooter for daily use, the Yamaha Ray could be a good option. Just be mindful of its limitations and take care of it to enjoy a smooth ride.
Frequently Asked Questions
What is the Yamaha Ray's fuel efficiency?
The Yamaha Ray offers a mileage of about 45-62 kilometers per liter, depending on riding conditions.
How comfortable is the Yamaha Ray for long rides?
The Yamaha Ray is designed for city commuting and provides a comfortable ride, but it may not be the best choice for very long distances.
What are the color options available for the Yamaha Ray?
The Yamaha Ray comes in several attractive colors, including black, blue, and red.
Does the Yamaha Ray have a good resale value?
Yes, the Yamaha Ray tends to hold its value well due to its popularity and brand reputation.
What safety features does the Yamaha Ray include?
The Yamaha Ray has a reliable braking system and good lighting for visibility, making it a safe choice for riders.
How often should I service the Yamaha Ray?
It is recommended to service the Yamaha Ray every three months to keep it in good condition.
Is the Yamaha Ray suitable for beginners?
Yes, the Yamaha Ray is easy to handle, making it a great option for new riders.
What is the warranty period for the Yamaha Ray?
The Yamaha Ray comes with a warranty of 2 years or 24,000 kilometers, whichever comes first.

Related Cars
Compare Yamaha Ray with these similar cars

Hero Pleasure Plus Pleasure Plus 110

Honda Activa Activa 6G

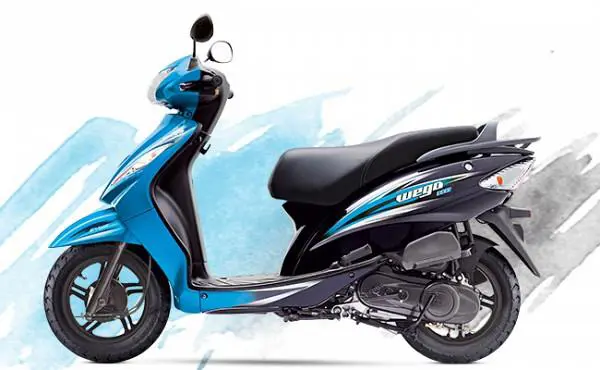

TVS Wego Wego Dual Tone

TVS Scooty (2019) Scooty Zest (Old Model)

Hero Maestro Maestro Edge 110 ZX Drum

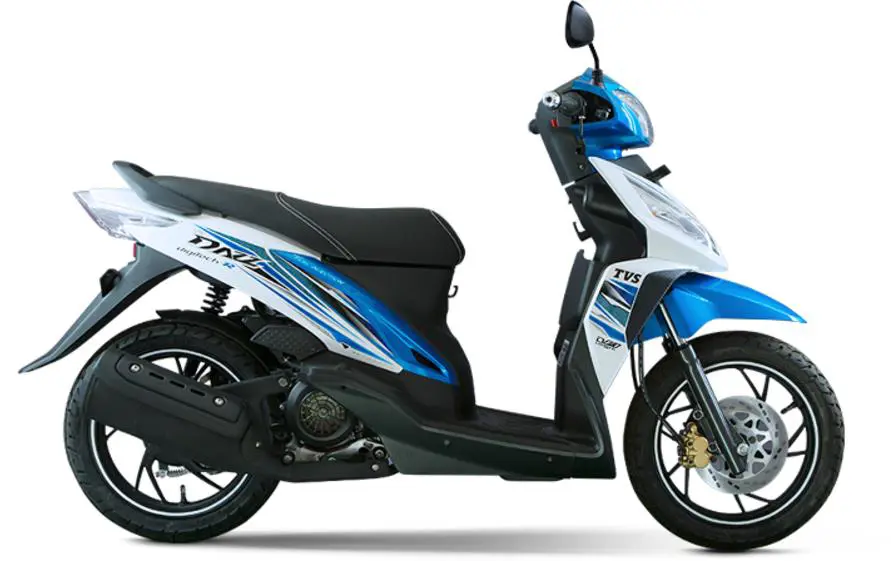

TVS Dazz Dazz DFi 110

Hero Pleasure Pleasure Special Edition

TVS Zest Scooty Zest 110

TVS Jupiter Jupiter 110
Bad idea to have a tubed tyre. More puncture, female driver will face lots of problem... Yamaha wake up.
How is its storage space ??? Can we keep helmet under the seat?
how much will be its on road price at hosur??
Good Color Combinations,but summary mileage,yamaha Review mileage is 5 kmpl differ,which one is true?
Hi, I'm using it since 6 DEC, 2012 . It is a wonderful scooter. Mileage is around 45 kmpl. Never start failure . Ground clearance is low in the specification ( 128 mm ) , but it is never become an issue in last 6 months with pillion also. Headlight is also tolerable though not the best . ANYBODY PLAN TO PURCHASE A NEW SCOOTER .... GO FOR IT WITH NO HESITATION.
wow.. a superb vehicle for ladies.. No shoulder pain .. no weight imbalance.. perfect for short - statured people like me.. Hats off to the R& D team for this innovative scooter..
what's the road price in hyderabad
hey guzy iam totally confused. which is better yamaha ray or honda dio. plz suggest me a good one.
hey guzy iam totally confused. which is better yamaha ray or honda ray. plz suggest me a good one.
hi guys i want to buy this ray. will any of you tell me the price in chennai
Explore the color options available for Yamaha Ray

Black Thunder
Black

Green Rage
Green

Pristine White
White

Regal Red
Red

True Blue
Blue
Watch reviews, test drives and walkarounds of Yamaha Ray

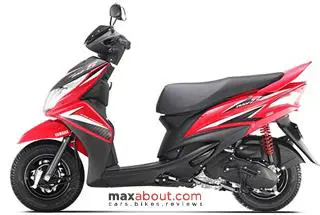

Yamaha Ray Z (Autos Maxabout)

Yamaha Ray Z F3Q

Yamaha Ray Z 'Black'

Yamaha Ray Z Red/Black
Latest News
Recent updates about Yamaha Ray
Search: "Yamaha Ray"






Latest Automotive News
Stay updated with the latest happenings in the automotive world






Most Popular Cars
Based on Cars Popular on Autos

Yamaha MT-125

Yamaha YZF-R6

Kawasaki Ninja 125

Yamaha TMAX 560

Kawasaki Ninja H2R

Yamaha YZF-R125

Yamaha RX 100

Taro GP1-250R
Recently Added Cars
New Cars Added On Autos
